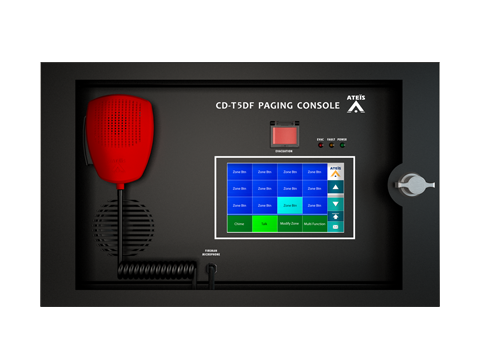

Compatible with the Boutique system, the wall-mounted PA console CD-T5DF comes with a 5" TFT touchscreen LCD panel, firefighter microphone, and evacuation button. It is designed with a high-strength IP30 metal enclosure encapsulated with a lockable cover. The 5" TFT touchscreen panel offers call search, message transmission, event activation, recording, message routing, message playback, level control, etc.
All PA functions and parameters for site operation, such as zone name buttons, zone group buttons, zone PA, pre/post chime setting, can be pre-programmed via a web browser. Additionally, various user levels with password protection make the CD-T5DF a versatile console that fits well in a commercial mall or high-security industrial facility.
Up to 16 PA consoles can be connected to BTQ-SL8, and 32 to BTQ-VM4/VM8/SG8; wiring can be in daisy chain or redundant loop. The maximum communication cable length between controller/secondary units and PA consoles is 250 m (820 feet) via shielded RJ45 connector CAT5/6 STP cable. The CD-T5DF is also an eco-friendly product with extremely low power consumption (1 W) during standby mode.
