BOUTIQUE is a highly flexible, compact, and self-powered PA/VA system for small and medium installations, available in rack-mount and wall-mount formats.

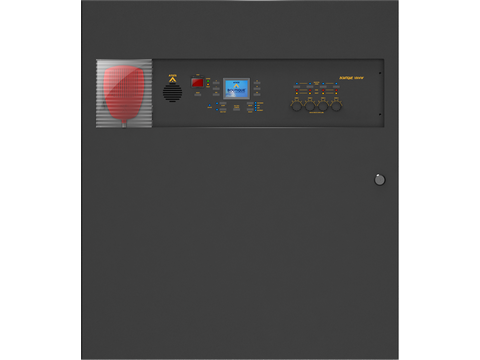

The BTQ-VM4W/VM8W is a compact wall-mount PA/VA controller that provides 4 and 8 monitored speaker zones respectively. Each controller can be cascaded with up to 31 BTQ-SL8 secondary units via local digilink and up to 64 x BTQ-VM4/BTQ-VM8/BTQ-SG8 via global network. This will then extend just 4 A/B speaker zones for monitoring to a large networked system of up to 16,384 zones.
The BOUTIQUE controller comes fully integrated with a built-in high-efficiency Class D amplifier of 250 W or 500 W and can handle a speaker load of 1000 W per zone and 2000 W max. per unit.
The BOUTIQUE system can be easily installed and configured through its LCD front panel. BOUTIQUE provides operational versatility and a multitude of options: volume control, equalization, audio routing, monitoring, control, event scheduler and chimes, and signal priority management (priority level 1 to 99), etc.. All these parameters can be configured using dedicated software based on a web browser.
Utilizing switching technology, the BOUTIQUE system is capable of broadcasting audio in multiple zones from a single amplifier. It is possible to add a second external amplifier to the first one to create a background music channel and a backup amplification channel simultaneously.
Additional functions using attenuators on impedance-monitored speaker lines, environmental noise detection via an optional Ethernet-based microphone, and a variety of local control functions directly from the front panel.
The BOUTIQUE units can also be networked via IP. The VoIP interface with standard SIP protocol allows easy integration with IP-PBX and IP phone; or for full integration with the TERRACOM system for network paging, control, intercommunication, system monitoring, and audio transmission over the intranet.
