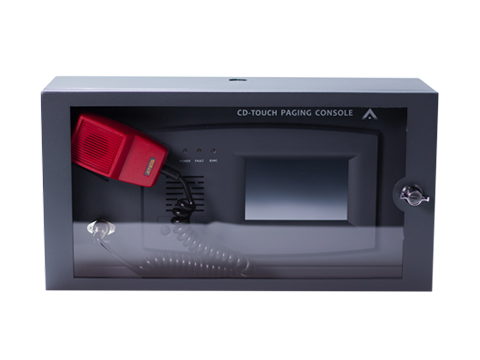

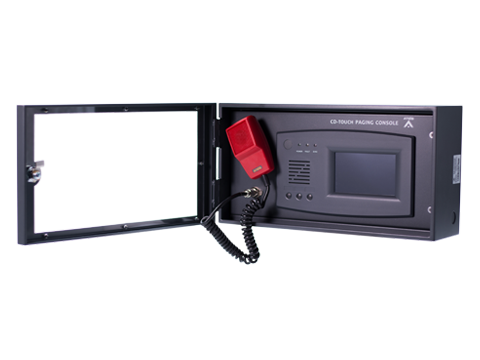

The CD-TOUCH console is a localization interface that allows call localization, message transmission, and DSP matrix parameter control. This console is compatible with DIVA systems.
CD-TOUCH features a backlit full-color 5'' touchscreen for straightforward and easy operation. The screen offers up to 168 buttons across 12 pages that can be freely assigned in the software to any zone or group of zones. Each key contains a color-changing field indicating if the zone is engaged by a different process.
All paging parameters for site operation can be preprogrammed and stored within the console, including message activation, level adjustment, and pre-call ring setting. Zone assignment, naming, and grouping can also be preconfigured.
It connects to a monitored bus on CAT-5 (FTP/STP). This connection also provides power through Ethernet (POE). In cases where POE is not available, or if the cable run exceeds 100 m, an additional power connection is provided for 24 V DC.
