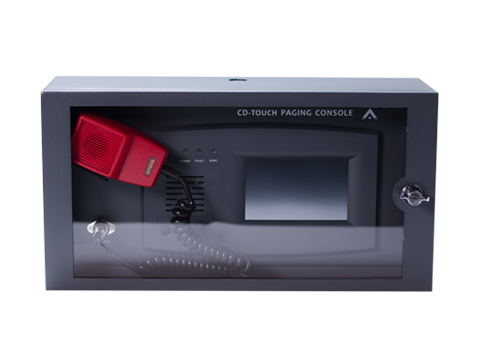

The CD-TOUCHAS is a touch console compatible with IDA8 systems. It allows call localization, message transmission, and control of DSP matrix parameters.

The CD-TOUCHAS features a 5" color backlit touch screen for easy and user-friendly operation. The screen offers up to 168 buttons on 12 pages that can be freely assigned in the software to any zone or group of zones. Each button contains a color-changing field indicating if the zone is occupied by a different process. Additionally, the CD-TOUCHAS has 3 hardware keys that can be assigned within the system control software.

All site operation paging parameters can be pre-programmed and stored within the console, including message activation, level adjustment, and pre-call ring setting. Zone assignment, naming, and grouping can also be preconfigured.

It connects to a monitored bus on CAT-5 (FTP/STP). This connection also provides power via Ethernet (POE). In case POE is not available, or if the cable run is over 100 m, an additional 24 V DC power connection is provided.

Features:

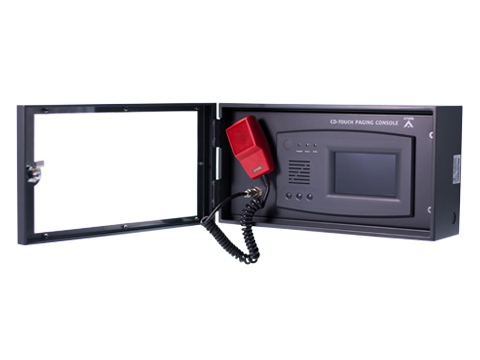

• Caja de metal para montaje en pared con cubierta bloqueable
• Secure CAT5/6 link to processor
• Microphone capsule monitoring
• Monitor speaker
• 5" full-color touch screen, 800 x 400 pixels
• 14 pages of 12 buttons
• Power, fault, and evacuation indicators
• Displays system status on LCD panel
