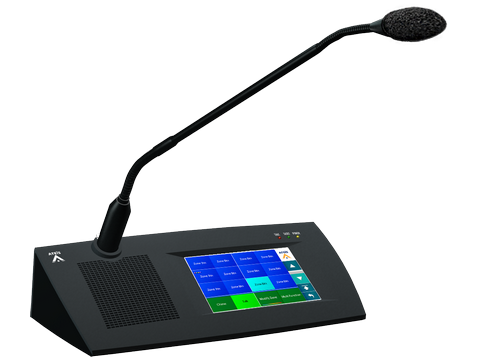

The megaphone microphone console with a 5" TFT touch screen DPM-T5/DPM-T5F provides live voices, message transmission, event activation, recording, message routing, message playback, level control, etc. Up to 16 megaphone consoles can be connected to BTQ-SL8 and 32 to BTQ-VM4/VM8/SG8; wiring can be in a chain or redundant loop. The maximum communication cable length between the controller/secondary units and the megaphone consoles is 250 m (820 feet) using shielded RJ45 connector STP CAT5/6 cables.

All paging functions and parameters for site operation can be preprogrammed as zone buttons, zone group buttons, message activation, pre/post chime, as well as various settings such as selection of integrated or external use, microphone/speaker, built-in microphone/speaker volume, neck microphone calibration, etc. can be adjusted via DPM-T5/DPM-T5F.

Furthermore, password protection makes DPM-T5/DPM-T5F a versatile device fitting well in a commercial shopping center or a high-security industrial facility. DPM-T5/DPM-T5F is also an eco-friendly product with extremely low power consumption (1 W) during standby mode.

Features:

• System status information (failure, zone occupancy, zone monitoring, etc.)
• Message playback, zone selection, level adjustment, event activation
• Supports multiple pages for assigned zones/events
• AGC function (Automatic Gain Control)
• Monitoring speaker
