Description

TSIP is a dual IP audio decoder that integrates 2 100V mono outputs with built-in 120W amplifiers. This amplified IP matrix is directly linked to the speaker line, allowing for reduced costs and clutter.

Thanks to its standard RJ45 interface, the TSIP connects directly to the network. An integrated web browser interface allows for simplified control and programming of the unit. The DSP-based architecture enables the management of news codecs. The SIP protocol enables compatibility with the digital telephony standard. TSIP is fully programmable through a VNB control protocol, event scheduler, commands, and variables.

TSIP is perfect for applications such as:

- An IP audio decoder for up to 3 zones, - A source selector when combined with a wall-mounted RAC remote control, - An amplified message player activated by a contact input.

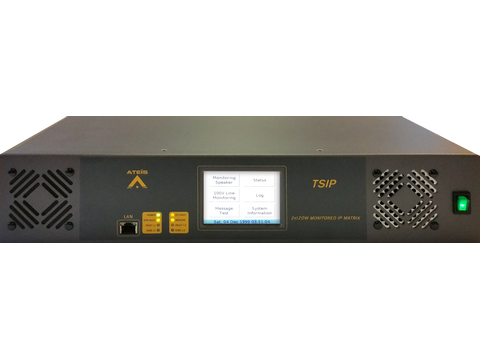

A front panel with a touch screen allows for:

- Monitoring of lines and amplifiers, - Transmission of test messages, - Audio sources heard through the speaker located on the front panel, - Status and history check, - Fault display.
