The UAP G3 is a cascade DSP audio processor that comes with 4 slots for modular cards for a fully flexible I/O configuration. The 4 configurable slots can include analog audio cards, digital audio I/O cards, and specialized cards such as VoIP card, AEC card, analog phone card, OCTO-Link card, and AES-EBU card. The I/O combination can be 4Ix4O, 4Ix8O, 8Ix4O, 8Ix8O, 4Ix12O, 12Ix4O, 16I or 16O. The use of OCTOLINK cards can expand audio I/O up to 32Ix32O. Up to 12 UAP G3 processors can be cascaded via the Digi-Link bus. The UAP G3 can be linked using a CAT5/6/7 cable with a shielded metal RJ45 connector (max length 33 feet/10 m between units).

The latest generation UAP G3 DSP processor also incorporates a complete library of drag-and-drop DSP components, such as AGC, AEC, Ducker, various mixer types, delay, A.N.G (automatic noise gain), ANR (ambient noise reduction), PEQ, feedback, high/low pass, message player, event scheduler for adjusting settings, presets, and event control, dynamic zone paging, input/output audio transmission, VoIP/SIP for teleconferencing, level

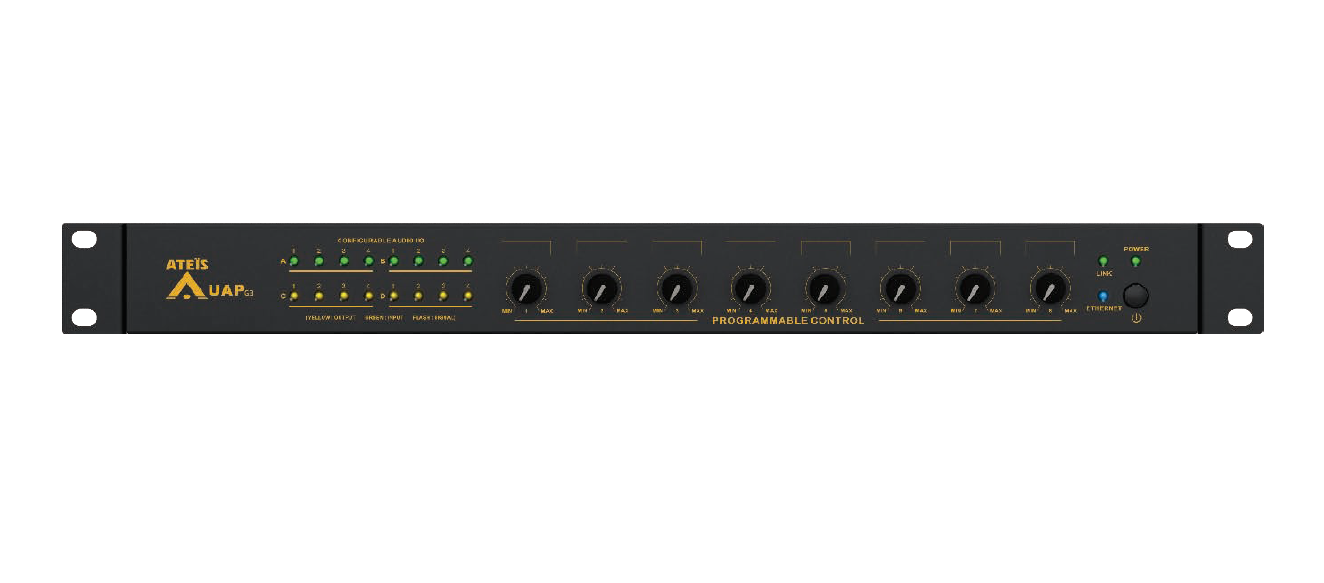

control, phone transmission/reception, audio recorder, etc., making the whole system flexible and easy to program and integrate. The UAP G3 processor features 8 programmable knobs, each knob can be programmed to a custom DSP parameter for intuitive control without a PC or any other software.

With the optional AEC (Acoustic Echo Cancellation) card from ATEÏS that uses our patented ultra-fast RAPIDO™ AEC algorithm, the UAP G3 is capable of using VoIP and SIP functionality for web and remote conferencing applications. The UAP G3 can be integrated with various remote inputs, outputs
or controllers for Home & Office Automation. Logical I/O, RS485, and Ethernet are also available for third-party control.
